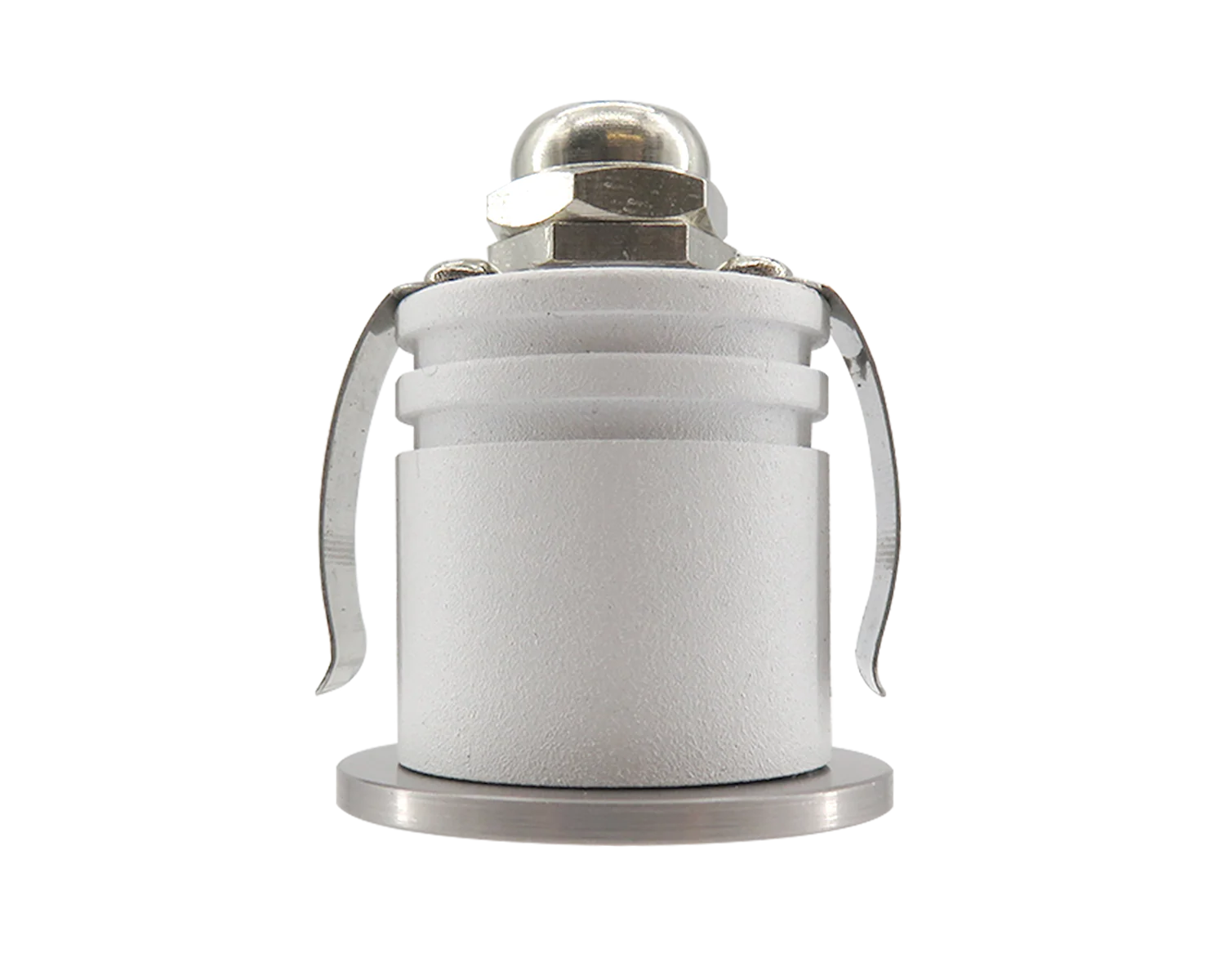

1W Ella LED Waterproof IP65 Marker, Step, Deck Light, Brushed Nickel (Non Dimmable Driver Included)
Product Overview

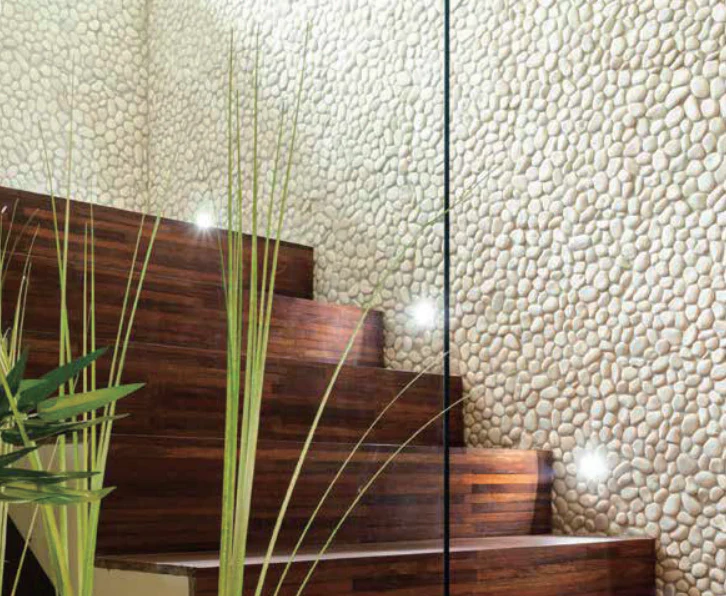

The Ella 1W LED Marker Light is a premium, low-profile architectural accent fitting designed for steps, walls, niches, plinths, pathways and even use as a compact mini downlight. With a sleek Ø30mm bezel and a discreet 25mm cut-out, it delivers soft, focused illumination with excellent visual comfort.
Delivering approx. 100 lumens from just 1W with CRI 90 high-quality light output, the Ella provides high-output, low-energy performance suitable for both residential and commercial projects.
Built with an integrated IP65-rated LED light source, the Ella is supplied with a through-hole waterproof non-dimmable micro driver that converts 240V mains to 12V low voltage, making it safe for wet rooms and outdoor environments. A dimmable driver option is also available for installations requiring lighting control.
For multi-fitting installations or locations with restricted space, the supplied micro driver can be removed and the fitting can be wired in series to a compatible remote driver, offering maximum flexibility for architectural projects.
Supplied with a Brushed Nickel bezel, the Ella is versatile, stylish and suitable for both modern interior and exterior designs.
Installation & Usage Notes
• Cut-out size: 25mm — ensure accurate drilling for a secure and flush fit.
• Overall bezel diameter: 30mm.
• Fitting height: 26mm (or 36mm including cable gland).
• Cable lengths: approx. 40cm from fitting to driver, plus 10cm driver output tail.
• IP65 rating: Suitable for indoor and outdoor environments, including wet rooms. The through-hole waterproof micro driver must be installed in a dry area or an IP-rated enclosure.
• Supplied with a waterproof non-dimmable 240V → 12V through-hole micro driver.
• For dimming, a compatible dimmable driver is available separately.
• For multi-fitting or shallow-depth installations, the micro driver can be removed, allowing the fittings to be series wired to a remote constant-current driver.
• Not suitable for direct burial into soil unless installed within a suitable protective housing/enclosure.
• Avoid overtightening the bezel or compressing the fitting during installation.
• Uno Lighting cannot provide electrical installation advice.
• All electrical work must be carried out by a qualified electrician.
